HB 4000 Gear Pump Series
HB 6050 Connect
Benefits & Features
- Temperature sensors PT100, FeCuNi, Ni120, NTC
- Three-phase motor with frequency converter
- External tank system and motor control centre
- Gear pump sizes of 5-80 kg/h flow rate
Specifications
- Dimensions : 700 x 375 x 420 mm
- Weight : 50 kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections : 1, 2, 3, 4
- Melting capacity : 12 kg/h
- Drive : Gear Motor
- Number of Pumps : 1
- Delivery rate of pump : 10-40 kg/h
- Tank Capacity: 9 litres
- Noise Emission : 60
- Designed for : EVA, PO, PSA

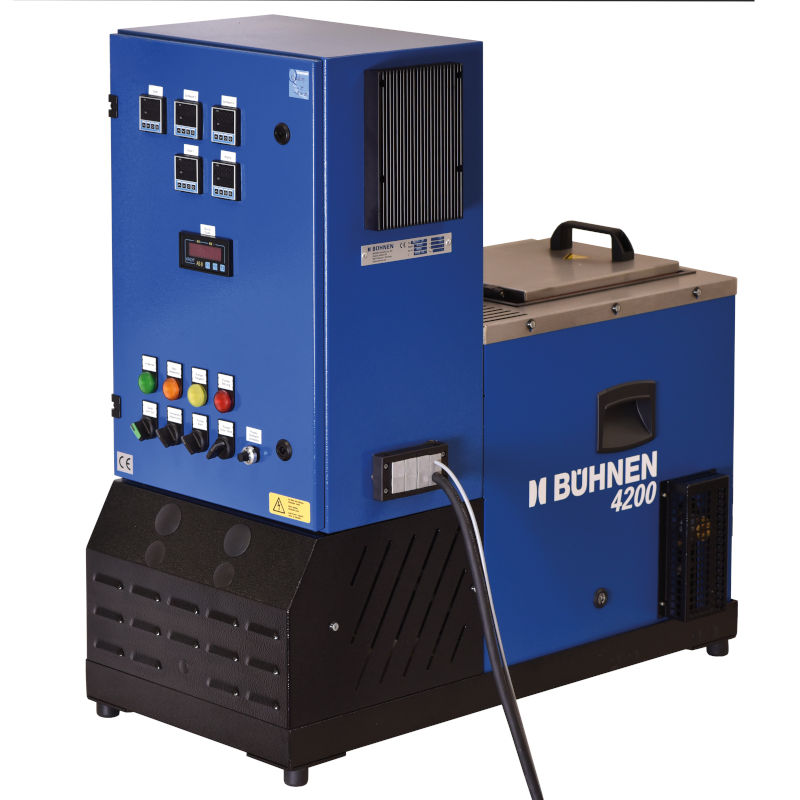

HB 4200 - gear pump
Benefits & Features
- Temperature sensors PT100, FeCuNi, Ni120, NTC
- Three-phase motor with frequency converter
- External tank system and motor control centre
- Gear pump sizes of 5-80 kg/h flow rate
Specifications
- Dimensions : 735 x 445 x 705 mm
- Weight : 70 kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections : 1, 2, 3, 4
- Melting capacity : 16 kg/h
- Drive : Gear Motor
- Number of Pumps : 1, 2
- Delivery rate of pump : 5 kg/h, 10 kg/h, 20 kg/h, 40 kg/h, 80 kg/h
- Tank Capacity: 18 litres
- Noise Emission : 60
- Designed for : EVA, PO, PSA

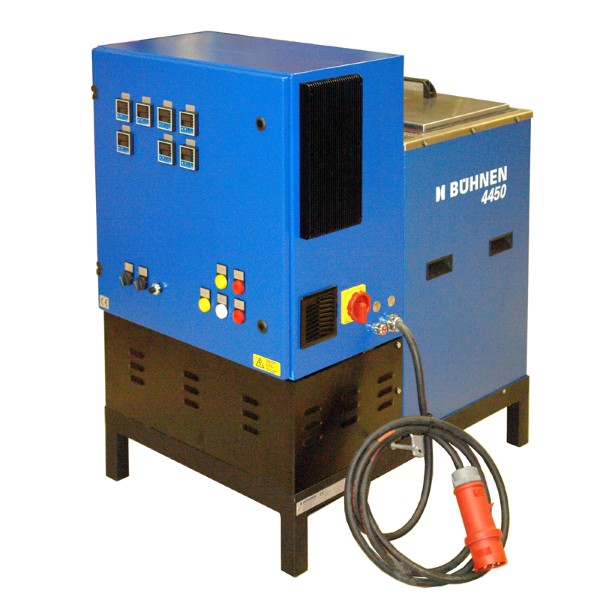

HB 4450 - gear pump for EVA, PO, TK, PA
Benefits & Features
- Non-stick coated melting tank
- Temperature sensors PT100, FeCu Ni, Ni120, NTC
- Three-phase motor with frequency converter
- External tank system and motor control centre
Specifications
- Dimensions : 840 x 680 x 1150 mm
- Weight : 100 kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections : 1, 2, 3, 4
- Melting capacity : 35 kg/h
- Drive : Gear Motor
- Number of Pumps : 1, 2, 3, 4
- Delivery rate of pump :10 kg/h, 20 kg/h, 40 kg/h, 80 kg/h, 160kg/h
- Tank Capacity: 45 litres
- Noise Emission : 60
- Designed for : EVA, PO, PSA, PA

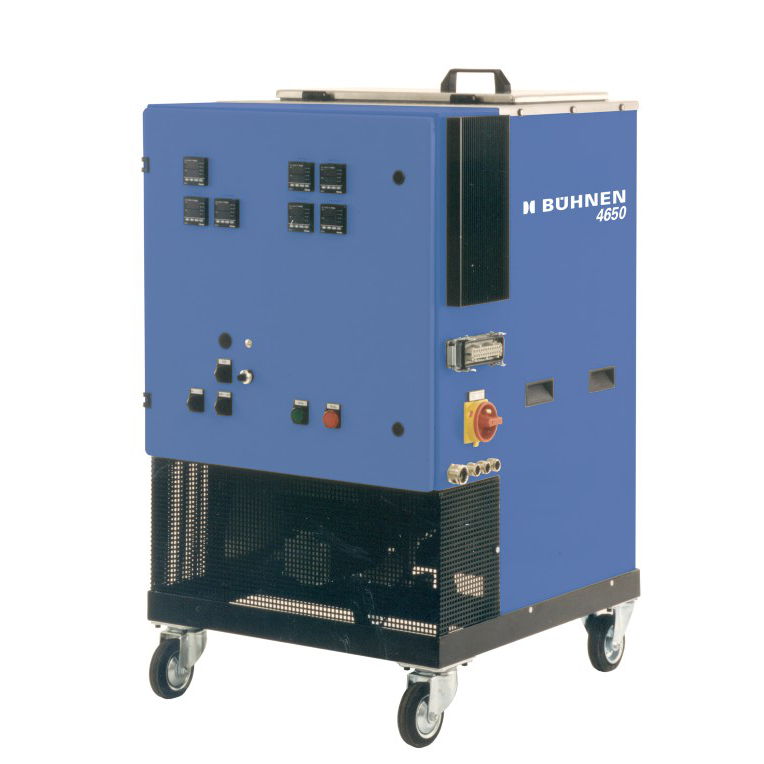

HB 4650 - gear pump for EVA, PO, TK, PA
Benefits & Features
- Non-stick coated melting tank
- Temperature sensors PT100, FeCu Ni, Ni120, NTC
- Three-phase motor with frequency converter
- External tank system and motor control centre
Specifications
- Dimensions : 840 x 680 x 1350 mm
- Weight : 120 kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections : 1, 2, 3, 4
- Melting capacity : 50 kg/h
- Drive : Gear Motor
- Number of Pumps : 1, 2, 3, 4
- Delivery rate of pump :10 kg/h, 20 kg/h, 40 kg/h, 80 kg/h, 160kg/h
- Tank Capacity: 65 litres
- Noise Emission : 60
- Designed for : EVA, PO, PSA, PA

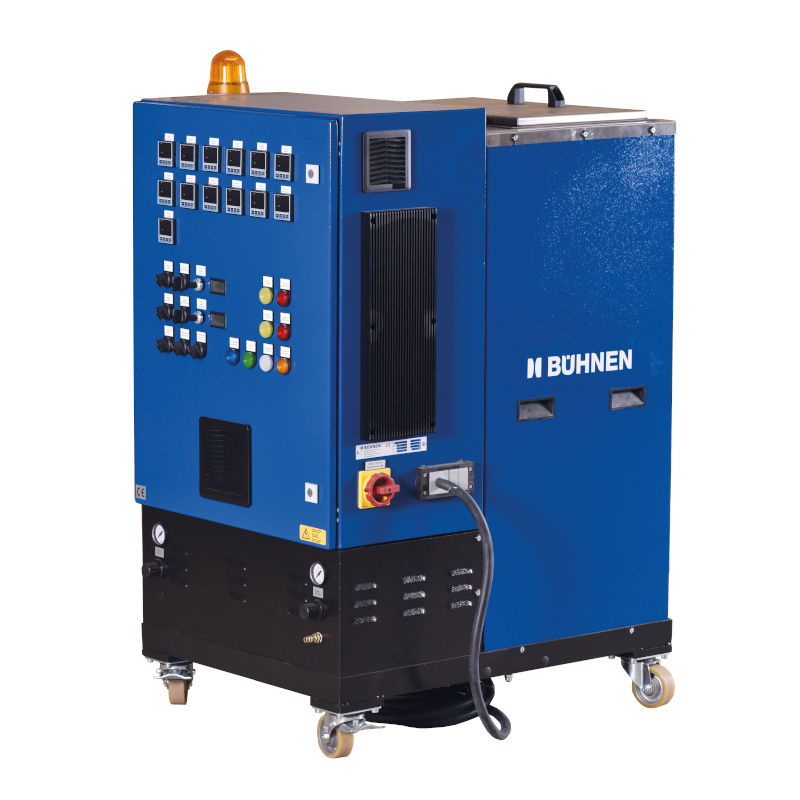

HB 4800 - gear pump for EVA, PO, TK, PA
Benefits & Features
- Non-stick coated melting tank
- Temperature sensors PT100, FeCu Ni, Ni120, NTC
- Three-phase motor with frequency converter
- External tank system and motor control centre
Specifications
- Dimensions : 1100 x 700 x 1380 mm
- Weight : 140 kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections : 1, 2, 3, 4
- Melting capacity : 60 kg/h
- Drive : Gear Motor
- Number of Pumps : 1, 2, 3, 4
- Delivery rate of pump :10 kg/h, 20 kg/h, 40 kg/h, 80 kg/h, 160kg/h, 320 kg/h
- Tank Capacity: 80 litres
- Noise Emission : 60
- Designed for : EVA, PO, PSA, PA

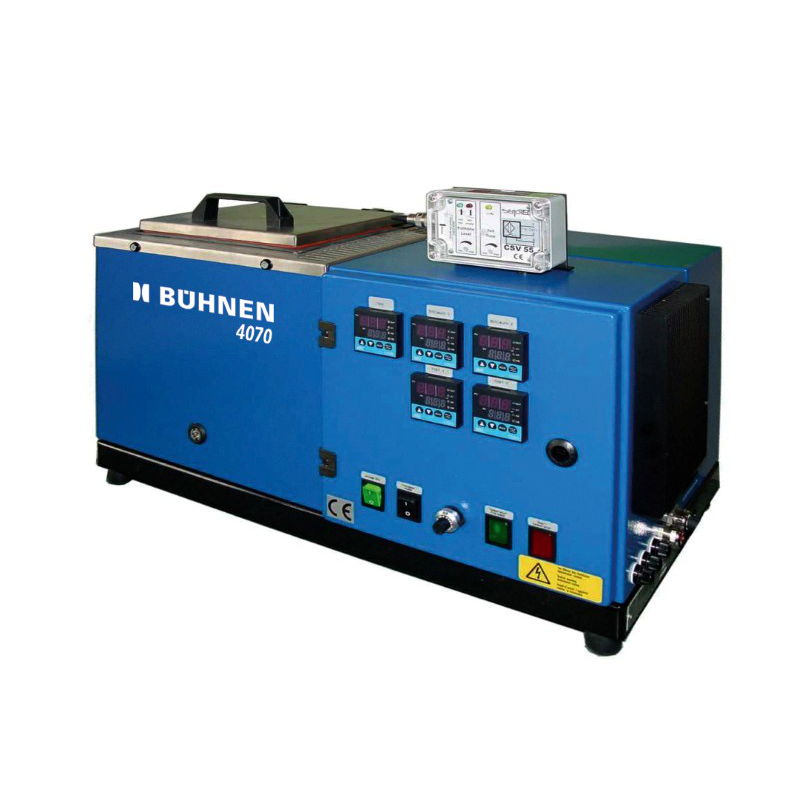

HB 4070 - gear pump especially for PA
Benefits & Features
- Non-stick coated melting tank
- Temperature sensors PT100, FeCu Ni, Ni120, NTC
- Three-phase motor with frequency converter
- External tank system and motor control centre
Specifications
- Dimensions : 740 x 395 x 420 mm
- Weight : 50 kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections : 1, 2, 3, 4
- Melting capacity : 6 kg/h
- Drive : Gear Motor
- Number of Pumps : 1
- Delivery rate of pump :5 kg/h, 10 kg/h, 20 kg/h, 40 kg/h,
- Tank Capacity: 7 litres
- Noise Emission : 60
- Designed for : PA

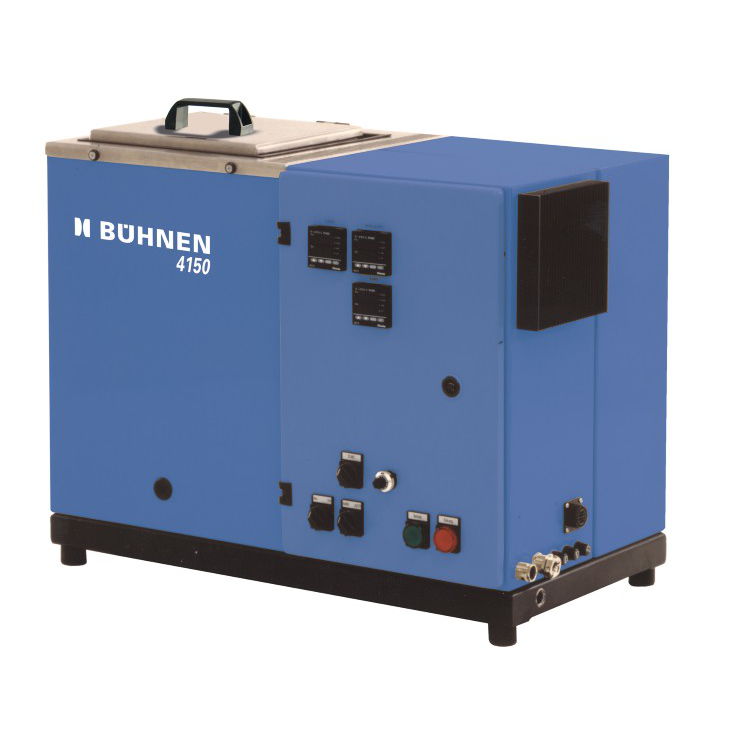

HB 4150 - gear pump especially for PA
Benefits & Features
- Non-stick coated melting tank
- Temperature sensors PT100, FeCu Ni, Ni120, NTC
- Three-phase motor with frequency converter
- External tank system and motor control centre
Specifications
- Dimensions : 700 x 390 x 570 mm
- Weight : 60 kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections : 1, 2, 3, 4
- Melting capacity : 12 kg/h
- Drive : Gear Motor
- Number of Pumps : 1
- Delivery rate of pump :5 kg/h, 10 kg/h, 20 kg/h, 40 kg/h, 80 kg/h
- Tank Capacity: 15 litres
- Noise Emission : 60
- Designed for : PA

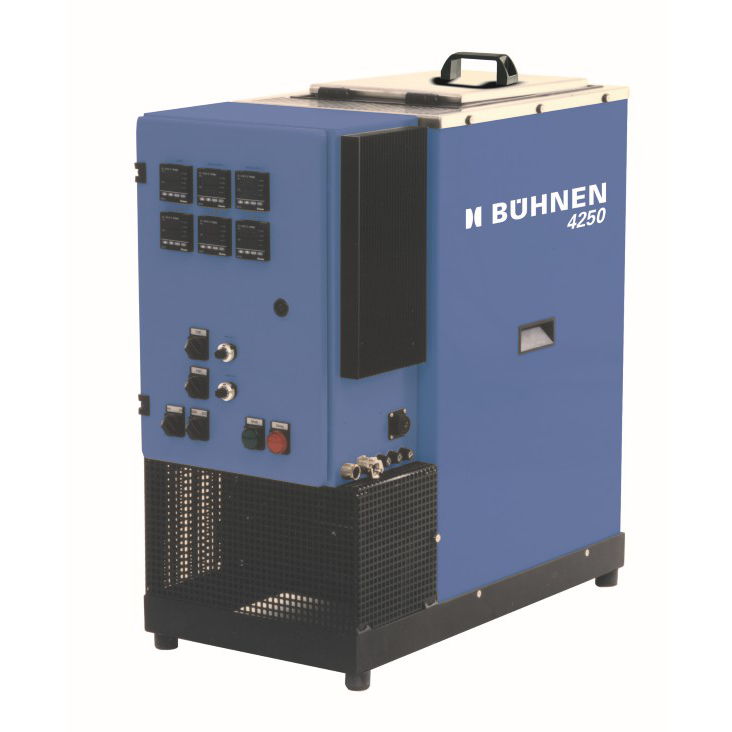

HB 4250 - gear pump especially for PA
Benefits & Features
- Non-stick coated melting tank
- Temperature sensors PT100, FeCu Ni, Ni120, NTC
- Three-phase motor with frequency converter
- External tank system and motor control centre
Specifications
- Dimensions : 800 x 430 x 770 mm
- Weight : 80 kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections : 1, 2, 3, 4
- Melting capacity : 20 kg/h
- Drive : Gear Motor
- Number of Pumps : 1,2
- Delivery rate of pump :10 kg/h, 20 kg/h, 40 kg/h, 80 kg/h, 160 kg/h
- Tank Capacity: 25 litres
- Noise Emission : 60
- Designed for : PA
Bulk unloader HB 4004
Benefits & Features
- Temperature sensors PT100, FeCuNi, Ni120, NTC
- Three-phase motor with frequency converter
- External tank system and motor control centre
- Integrated compressed air dryer
Specifications
- Dimensions : 720 x 360 x 510 mm
- Weight : 50 kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections : 1, 2, 3, 4
- Melting capacity : 2kg/h
- Drive : Gear Motor
- Number of Pumps : 1
- Delivery rate of pump : 38.4 kg/h
- Tank Capacity: 4 litres
- Noise Emission : 60
- Designed for : PUR/ POR
HB 4008 - gear pump for PUR and POR
Benefits & Features
- Temperature sensors PT100, FeCuNi, Ni120, NTC
- Three-phase motor with frequency converter
- External tank system and motor control centre
- Integrated compressed air dryer
Specifications
- Dimensions : 755 x 360 x 705 mm
- Weight : 75 kg
- Operating Voltage : 3/N/PE 400 V 50Hz
- Hose Connections : 1 – 4
- Melting capacity : 4kg/h
- Drive : Gear Motor
- Number of Pumps : 1
- Delivery rate of pump : 76.8 kg/h
- Tank Capacity: 8 litres
- Noise Emission : 60
- Designed for : PUR/ POR

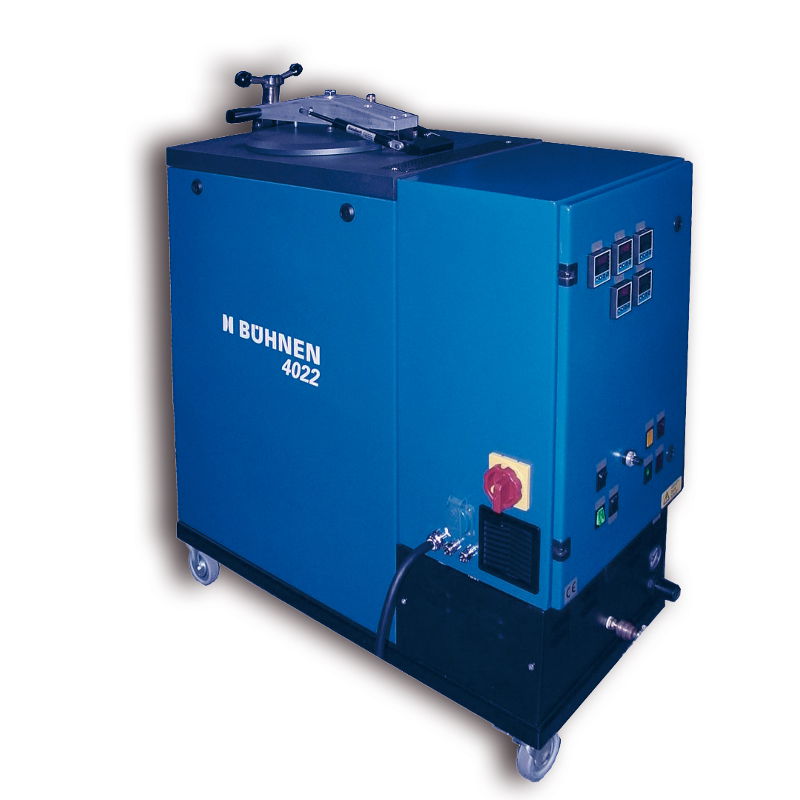

HB 4022 - gear pump for PUR and POR
Benefits & Features
- Temperature sensors PT100, FeCuNi, Ni120, NTC
- Three-phase motor with frequency converter
- External tank system and motor control centre
- Integrated compressed air dryer
Specifications
- Dimensions : 940 x 480 x 1220 mm
- Weight : 130 kg
- Operating Voltage : 3/N/PE 400V 50Hz
- Hose Connections : 1 – 4
- Melting capacity : 16kg/h
- Drive : Gear Motor
- Number of Pumps : 2
- Delivery rate of pump : 10 / 20 / 40 / 80 kg/h
- Tank Capacity: 22 litres
- Noise Emission : 60
- Designed for : PUR/ POR
