HB 6000 series

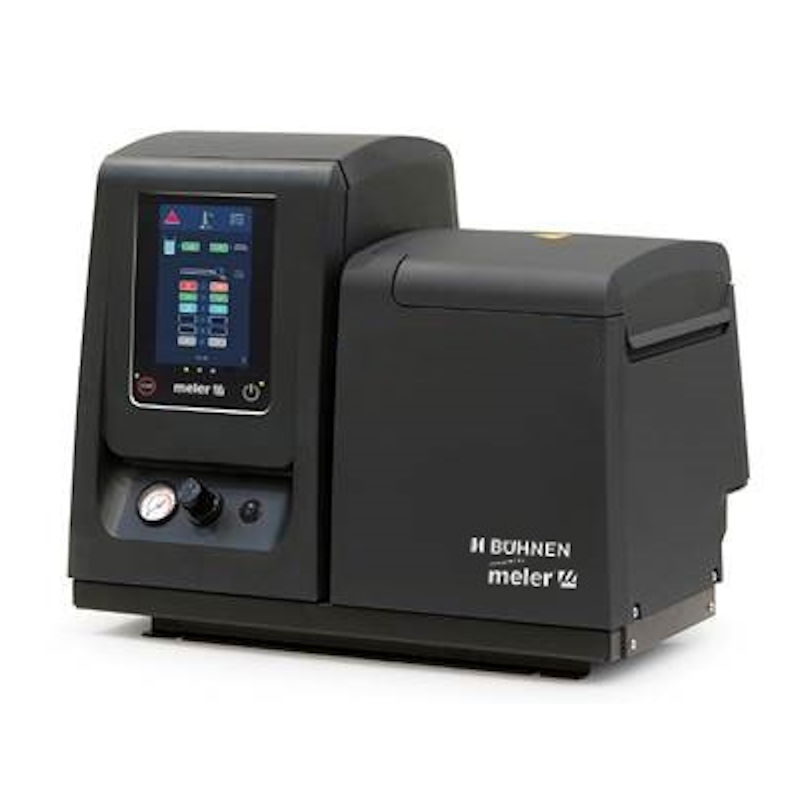

HB 6050 Connect
Benefits & Features
The latest generation of piston pump tank systems of the HB 6000 series now offers a touchscreen for faster operation. Suitable for EVA, PO and TK hot melt adhesives.
The latest generation of piston pump tank systems of the HB 6000 series now offers a touchscreen for faster operation. Suitable for EVA, PO and TK hot melt adhesives.
- 7″ touchscreen for intuitive operation
- New possibilities for integration into an existing peripheral
- Highest compatibility with Nordson and Robatech
Specifications
- Dimensions : 560 x 308 x 424 mm
- Weight : 37.5kg
- Hose Connections: up to 6
- Melting Capacity: up to 30 kg/h
- Drive: piston pump
- Number of Pumps: 1
- Delivery rate of pump: up to 66 kg/h
- Tank of Capacity: 37.4l
- Noise Emmision: 60
- Designed for: EVA, PO, PSA

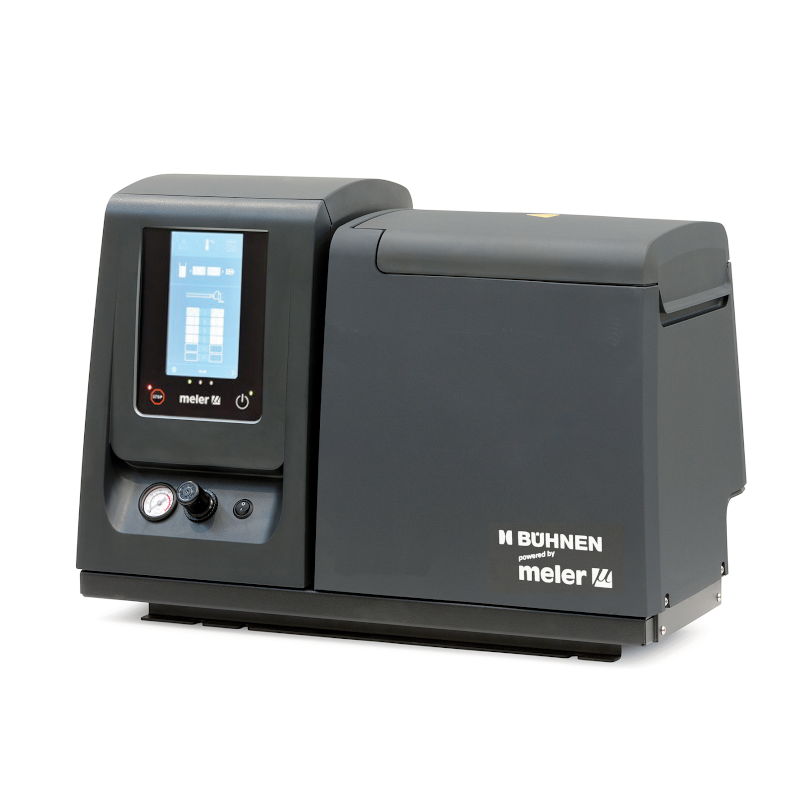

HB 6100 - piston pump for EVA, PO, TK
Benefits & Features
- High melting capacity of 6 kg/h – 11 kg/h
- New possibilities for integration into an existing peripheral
- Highest compatibility with Nordson and Robatech
Specifications
- Dimensions : 671 x 341 x 481 mm
- Weight : 45.7kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections: 1, 2, 3, 4, 5, 6
- Melting Capacity: 13.5 kg /h
- Drive: piston pump
- Number of Pumps: 1
- Delivery rate of pump: 30 kg/h
- Tank of Capacity: 10 liters
- Noise Emmision: 60
- Designed for: EVA, PO, PSA

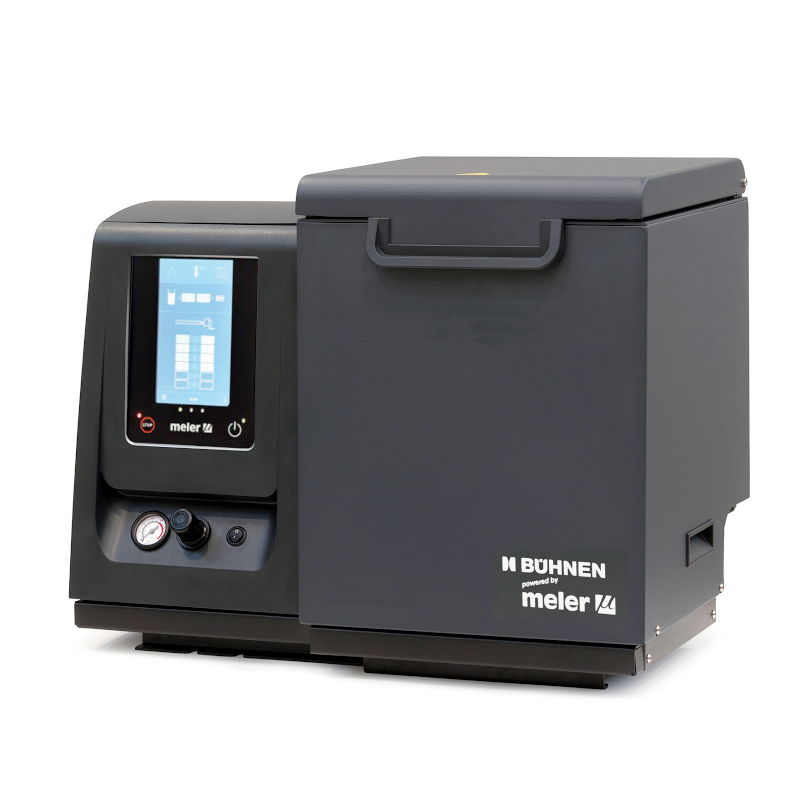

HB 6200 - piston pump for EVA, PO, TK
Benefits & Features
- A choice of Ni120 or PT 100 sensors
- The delivery volume of the piston pump is individually adjustable
- A choice of 2 different piston pump sizes
- Low maintenance intervals
Specifications
- Dimensions : 671 x 382 x 524 mm
- Weight : 60.2kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections: 1, 2, 3, 4, 5, 6
- Melting Capacity: 19 kg /h
- Drive: piston pump
- Number of Pumps: 1
- Delivery rate of pump: 66 kg/h
- Tank of Capacity: 20 liters
- Noise Emmision: 60
- Designed for: EVA, PO, PSA

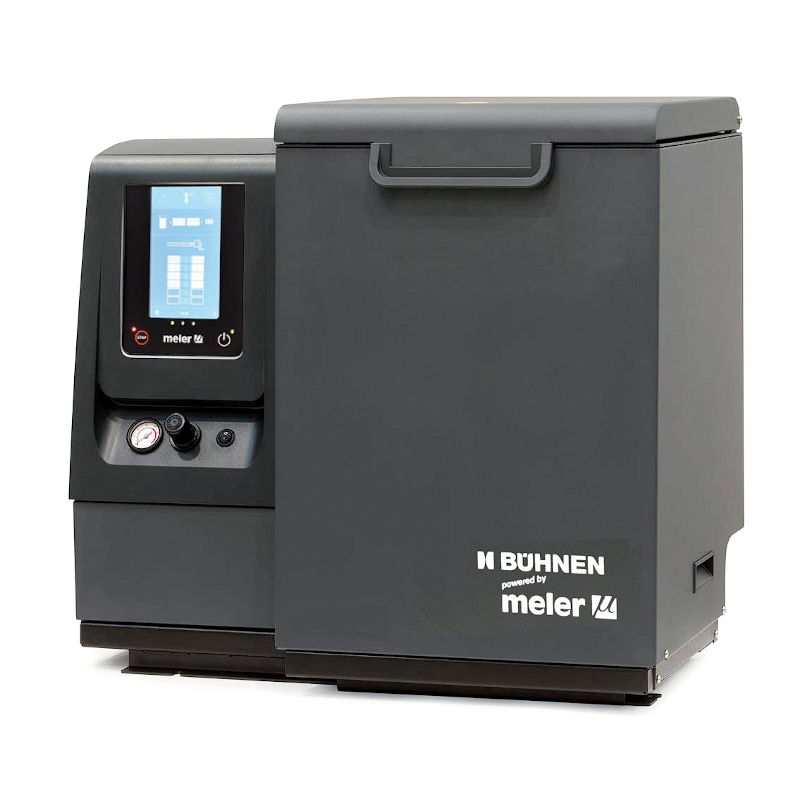

HB 6350 - piston pump for EVA, PO, TK
Benefits & Features
- A choice of Ni120 or PT 100 sensors
- The delivery volume of the piston pump is individually adjustable
- A choice of 2 different piston pump sizes
- Low maintenance intervals
Specifications
- Dimensions : 738x 435 x 673 mm
- Weight : 90.1kg
- Operating Voltage : 3/N/PE 400 V
- Hose Connections: 1, 2, 3, 4, 5, 6
- Melting Capacity: 30 kg /h
- Drive: piston pump
- Number of Pumps: 1
- Delivery rate of pump: 66 kg/h
- Tank of Capacity: 37 liters
- Noise Emmision: 60
- Designed for: EVA, PO, PSA
