Drum Melter Series

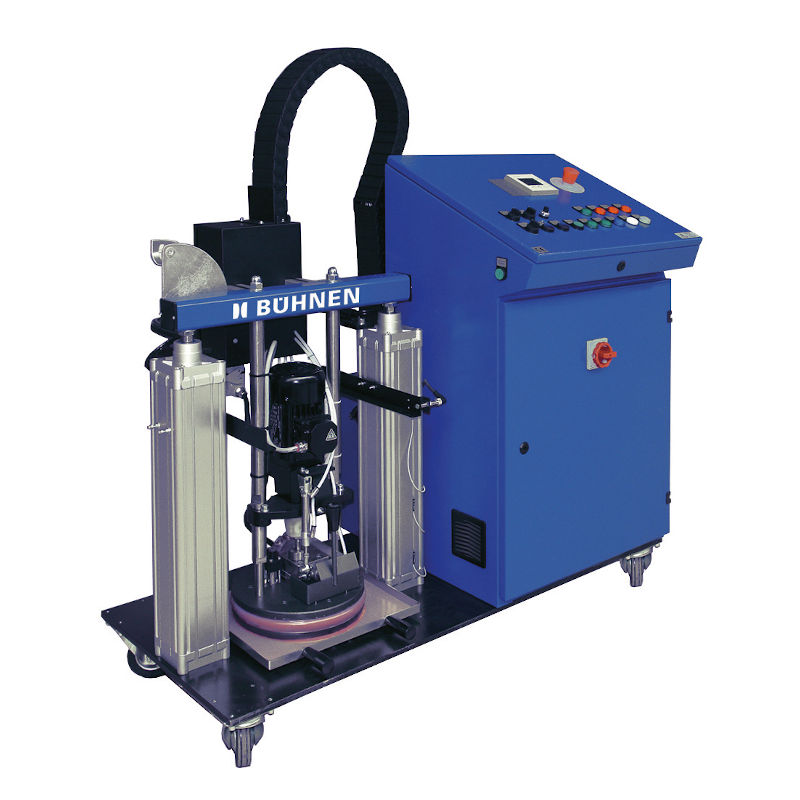

HB 4020 FS - for PUR, POR, TK
Benefits & Features
- Individual drum-dependent base plate
- Temperature sensors PT100, FeCuNi, Ni120, NTC
- Three-phase motor with frequency converter
- External drum melter system and motor control centre
Specifications
- Dimensions : 1300 x 520 x 1650 mm
- Weight : 240 kg
- Operating Voltage : 3/N/PE 400 V AC 50 Hz
- Hose Connections : 1, 2, 3, 4
- Melting capacity : 5-20 kg/h
- Drive : Gear Motor
- Number of Pumps : 1
- Delivery rate of pump : 5 kg/h, 10 kg/h, 20 kg/h, 40 kg/h
- Tank Capacity: 20 litres Fass
- Noise Emission : 60
- Designed for : PUR/POR

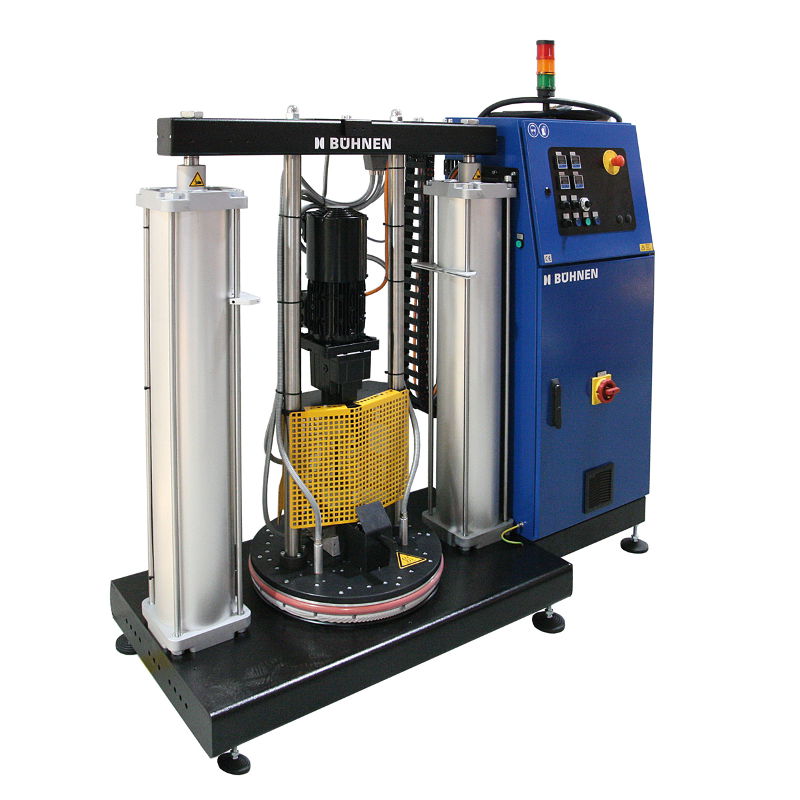

HB 4200 FS - for PUR, POR, TK
Benefits & Features
- Individual drum-dependent base plate
- Temperature sensors PT100, FeCuNi, Ni120, NTC
- Three-phase motor with frequency converter
- External drum melter system and motor control centre
Specifications
- Dimensions : 1820 x 710 x 2750 mm
- Weight : 580 kg
- Operating Voltage : 3/N/PE 400 V /50 Hz
- Hose Connections : 1, 2, 3, 4
- Melting capacity : 20-200 kg/h
- Drive : Gear Motor
- Number of Pumps : 1, 2
- Delivery rate of pump : 20 – 300kg/h
- Tank Capacity: 200 litres Fass
- Noise Emission : 60
- Designed for : PUR/POR
